1/2″ Quick Connect Gas Connector
LP & Weber Natural Gas Hose Extension used for connecting medium BTU output outdoor appliances such as BBQ Grills, Patio Heaters, Fire Pits, Crawfish Burners, and Beer Brewers to a permanent gas supply via quick connect.
*Standard Hose Length is 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOUR ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

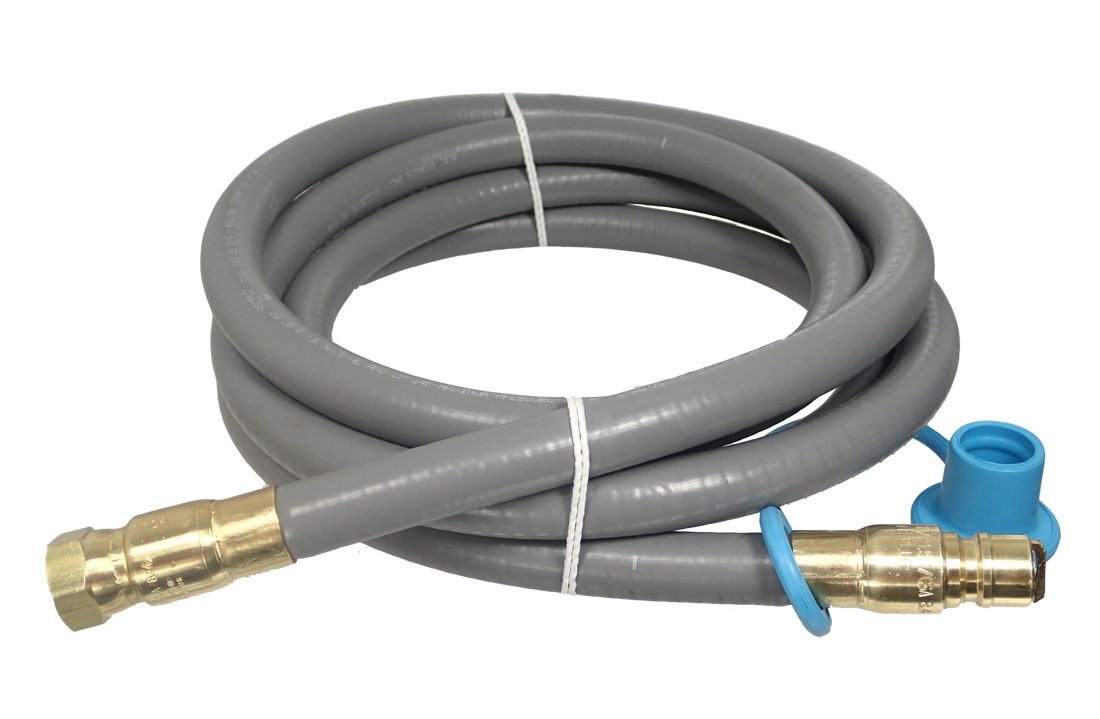

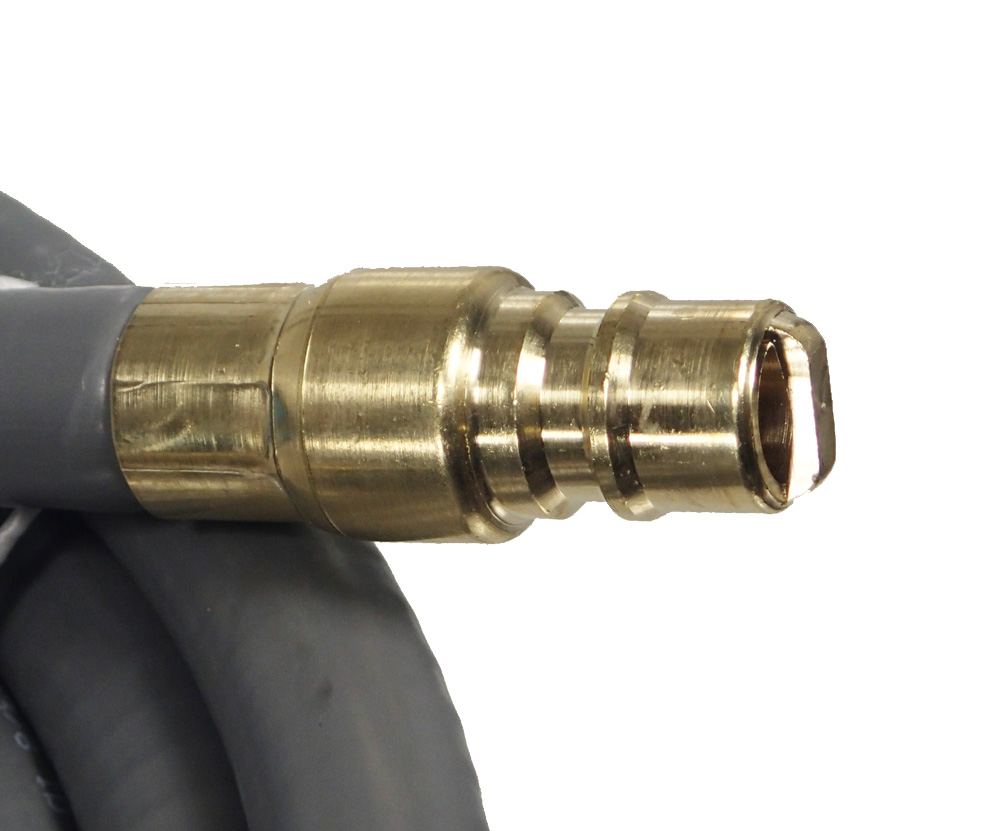

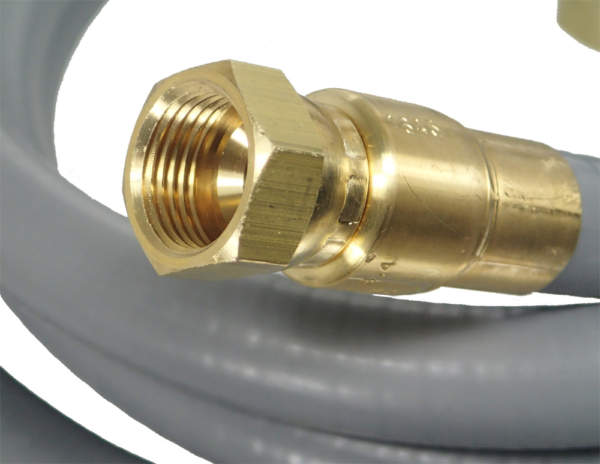

HOSE DESCRIPTION – 1/2″ ID Stripwound Hose Assembly with a 1/2″ Male QD Plug X 1/2″ Female Flare Swivel. 10′ Overall Length (Can be custom made to any length required).
COMPATIBLE QUICK DISCONNECT – 1/2″ Female Quick Disconnect. MBS Part Numbers 104088 / 104023
MAX. FLOW CAPACITY – 135,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – ANSI Z21.54 & DG 3874 Used for Natural & LP Gas
