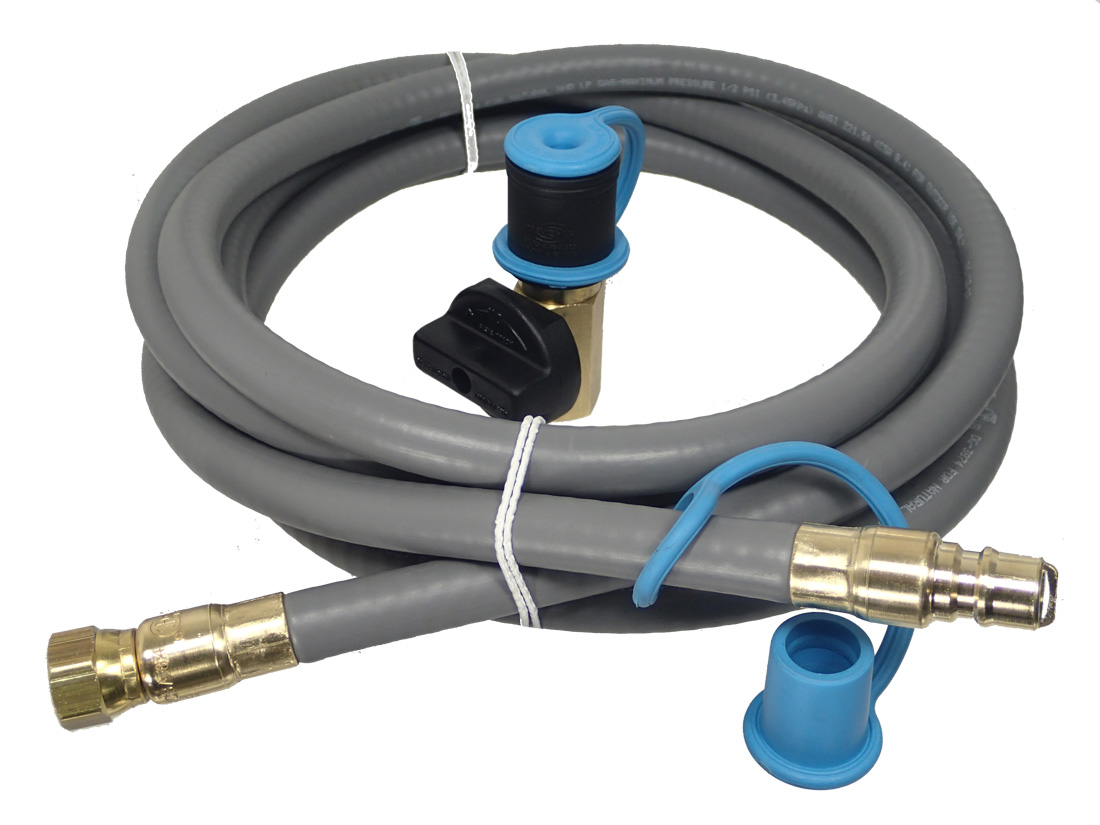

3/8″ Ball Valve Quick Connect Natural Gas Connector Kit
Natural Gas BBQ hose and LP Gas hose used for connecting outdoor appliances such as BBQ Grills, Patio Heaters, Fire Pits, Crawfish Burners, and Beer Brewers to a permanent gas supply via bbq integral ball valve gas quick disconnect.
*Standard Hose Length 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOUR ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

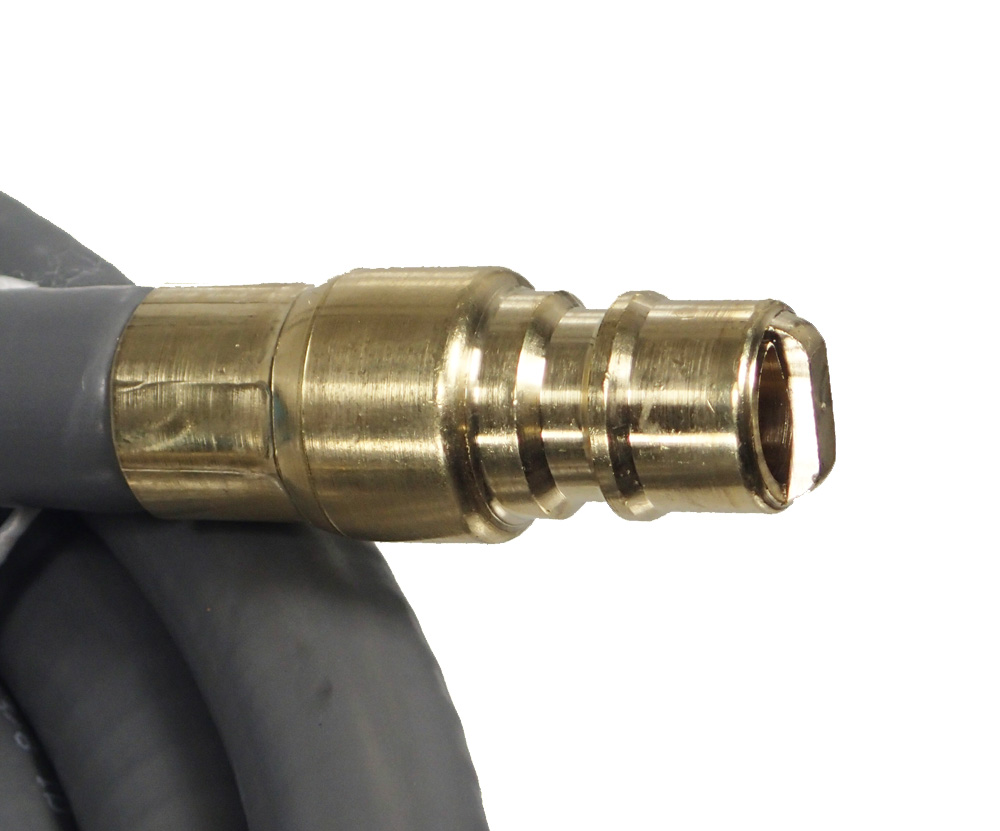

HOSE DESCRIPTION – 3/8″ ID Stripwound Hose Assembly with a 3/8″ Male QD Plug X 3/8″ Female Flare Swivel. 10′ Overall Length (Can be custom made to any length required).

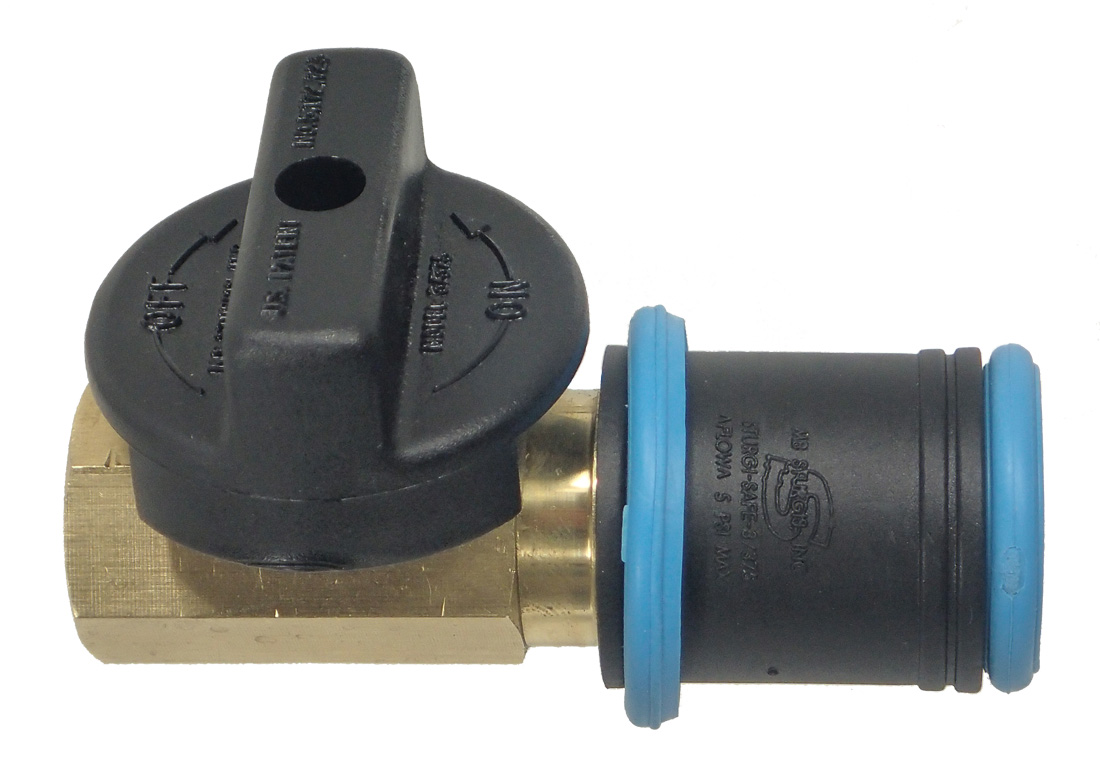

QUICK DISCONNECT – Model 3/375 3/8″ Female Integral Ball Valve Quick Disconnect X 3/8″ Female NPT MAX.
FLOW CAPACITY – 60,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.90) / Hose Assembly (ANSI Z21.54) & DG 3874 Used for LP and Natural Gas
